Different Screens
for Multiple Purposes

Perforated Metal

Perf Screen

Perforated metal security screens are manufactured from a single sheet of steel or aluminum that is mechanically punched with a uniform pattern of small holes. The sheet is then coated or painted for corrosion resistance and durability. This screen type provides a rigid physical barrier designed to resist forced entry while allowing airflow and outward visibility.

Meshtec Screen

Meshtec Screen

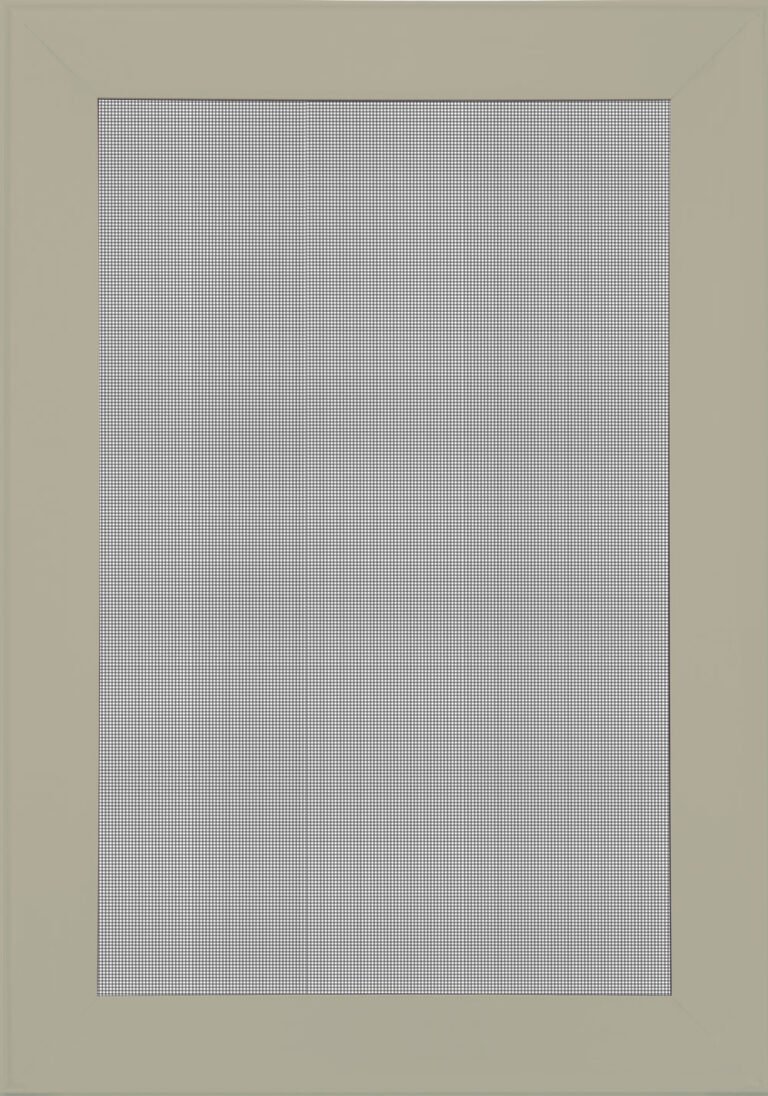

Meshtec security screens are constructed from high tensile corrosion resistant stainless steel wire woven into a fine mesh and secured within a reinforced door frame system. The mesh is coated for corrosion resistance and strength. This design provides advanced security while maintaining excellent visibility and ventilation.

Technical Specifications

PERFORATED SCREEN

MESHTEC SCREEN

Material

Aluminium Alloy or Perforated Steel

0.050" to 0.063" (1.3 to 1.6 mm)

Stainless Steel

.031" (0.8mm)

Viewing Angle

140 Degrees

156 Degrees

Screen Aperture

0.093" (2.4 mm)

0.062" (1.6 mm)

Ventilation-Air Flow

33%

42%

AAMA 1901 Tested

Knife Shear Test Passed

Pry Test Passed

Impact Test Passed

Insect Protection

Price Range

* Insect or security mesh provides an effective barrier to insects larger than the stated aperture of the mesh. Insects smaller than the stated aperture may not be impeded.
